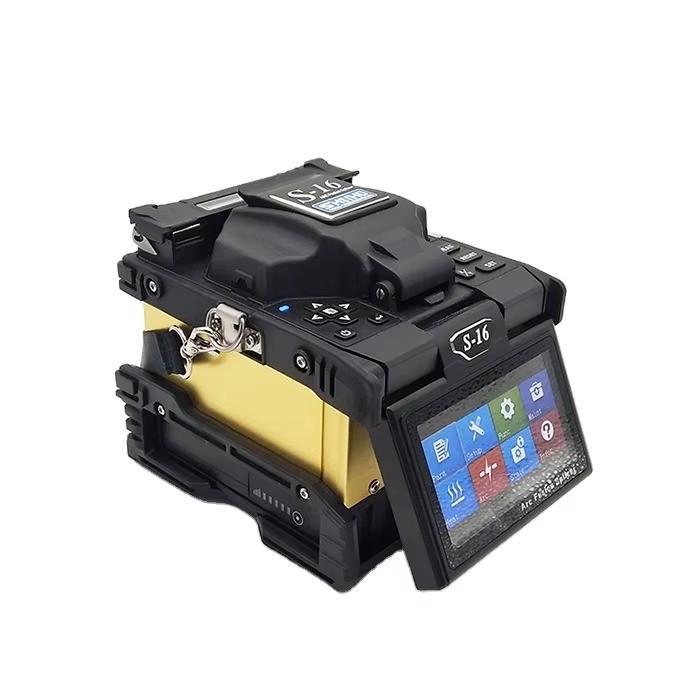

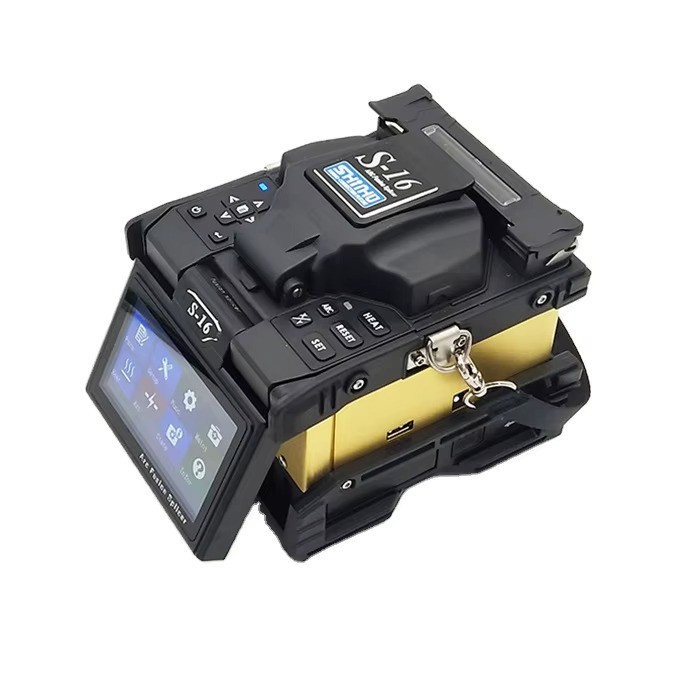

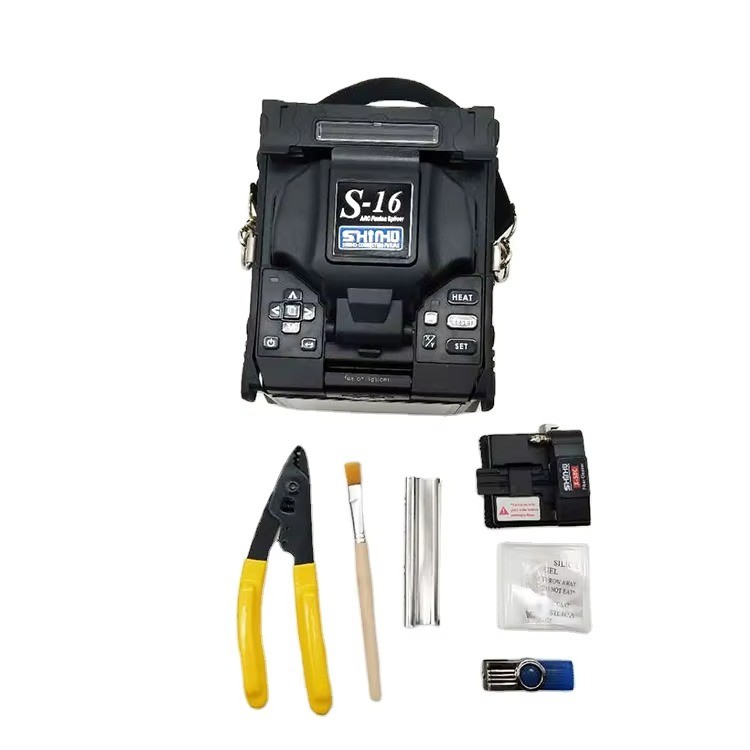

Shinhu S-16 Fiber Fusion Splicing Machine

0 /5.0 (0 reviews)
Pricing
৳93,000.00 /PCS

98 available

Minimum order qty 1

Estimate Shipping Time 22 Days

seller

Inhouse product

Message Seller

Warranty

This Product has 3 YEAR WARRANTY Warranty

Warranty Circle
  • warranty check circle Cash on Delivery Available
  • warranty check circle Free Shipping

Shinhu S-16 Fiber Fusion Splicing Machine একটি পোর্টেবল এবং উচ্চক্ষমতা সম্পন্ন Optical Fiber Fusion Splicer যা FTTx এবং FTTH নেটওয়ার্কের জন্য আদর্শ।
এটি দ্রুত এবং নির্ভুল স্প্লাইসিং নিশ্চিত করে, স্বয়ংক্রিয় ফিউশন ওয়েল্ডিং এবং হিটিং ফাংশন সহ আসে। টেলিকম, ISP এবং FTTH ইনস্টলেশনে এটি উচ্চ নির্ভরযোগ্যতা ও কার্যকর সমাধান প্রদান করে।

Model Number
S-16
Type
FTTx Solutions
Brand Name
SHINHO
Place of Origin
Anhui, China
Use
FTTH
Warranty Time
3 years
Network
5 g, 4 G, 3 G
Port
HDY-13505N65S-A
Power Source
AC 220 V
Power - Minimum Receivable
60W
Frequency Range
50/60Hz
Alignment method
4 motors core to core alignment
Applicable fiber
SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
Cladding diameter
80~150μm
Coating diameter
160~3000μm
Cleaved length
5-16mm
Typical splice loss
SM: 0.02dB;MM: 0.01dB;DS: 0.04dB;NZDS: 0.04dB
Typical splice time
6 seconds
Typical heating time
18 seconds
Electrode life
More than 4000 times
Dimension/Weight
160mm (L)*136mm (W)*140mm (H) /2.20kg
